Product Overview

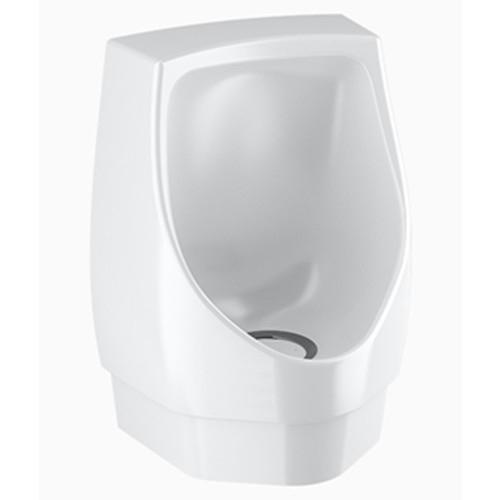

The Sloan WES‑1000‑STG Standard Waterfree Urinal redefines commercial restroom efficiency with its waterless operation, helping facilities save up to 40,000 gallons of water each year while qualifying for LEED and other sustainability credits. Crafted from robust vitreous china and finished with SloanTec® hydrophobic antimicrobial glaze, this waterfree urinal resists bacteria, mold, mildew and mineral scale — improving cleanliness and reducing maintenance. Its patented sealed locking cartridge is engineered for long life and reliable odor control, and the touch-free design supports optimal hygiene by eliminating the need for manual flushing. ADA compliant when installed per guidelines, the fixture includes a wall bracket and uni-coupler for straightforward installation in new builds or retrofit projects. Perfect for high-traffic environments like offices, schools, restaurants, and healthcare facilities, this innovative urinal improves sanitation, cuts utility costs, and simplifies facility maintenance.
Features
- Uses no water for maximum LEED credits and minimal water and sewage costs
- Conserves up to 40,000 gallons of water each year
- Durable, hygienic vitreous china featuring SloanTec® hydrophobic, antimicrobial glaze
- Touch-free operation promotes hygiene and eliminates cross contamination
- Patented, sealed locking cartridge engineered to last for an average of 7,000 uses
- Five new and improved features minimizes odors and mess
- cUPC certified to meet or exceed ASME 112.19.19 standards
- Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
- Keeps pipes and housing cleaner - flexible pour spout combines with a modified cartridge outlet to concentrate and redirect the exiting urine
- Reduces odor - the cartridge features a reduced surface area that eliminates space for bacteria growth
- Retains sealant better - diverter combines with the internal baffle to help retain sealant, even if a bucket of water is accidentally dumped into the urinal
- SloanTec® is a unique and proprietary glaze that imparts permanent hydrophobic (water-repellent) and oleophobic (oil-repellent) properties to vitreous china
| Brand | Sloan® |
| Case LxWxH | x x |
| Color | White |
| Cube | 0 |
| UPC | 671254445062 |
| Packaging Put/Up | 1/ea |
| Pallet Ti x Hi x Qty | x x |
| Sell UOM LxWxH | EA - x x |
| Sell UOM Weight (lbs.) | 70.08 |
| Weight | 0 |
Safety Data Sheets
No Safety Data Sheets available for this product.
Technical Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Installation Guide | 1466 KB |
